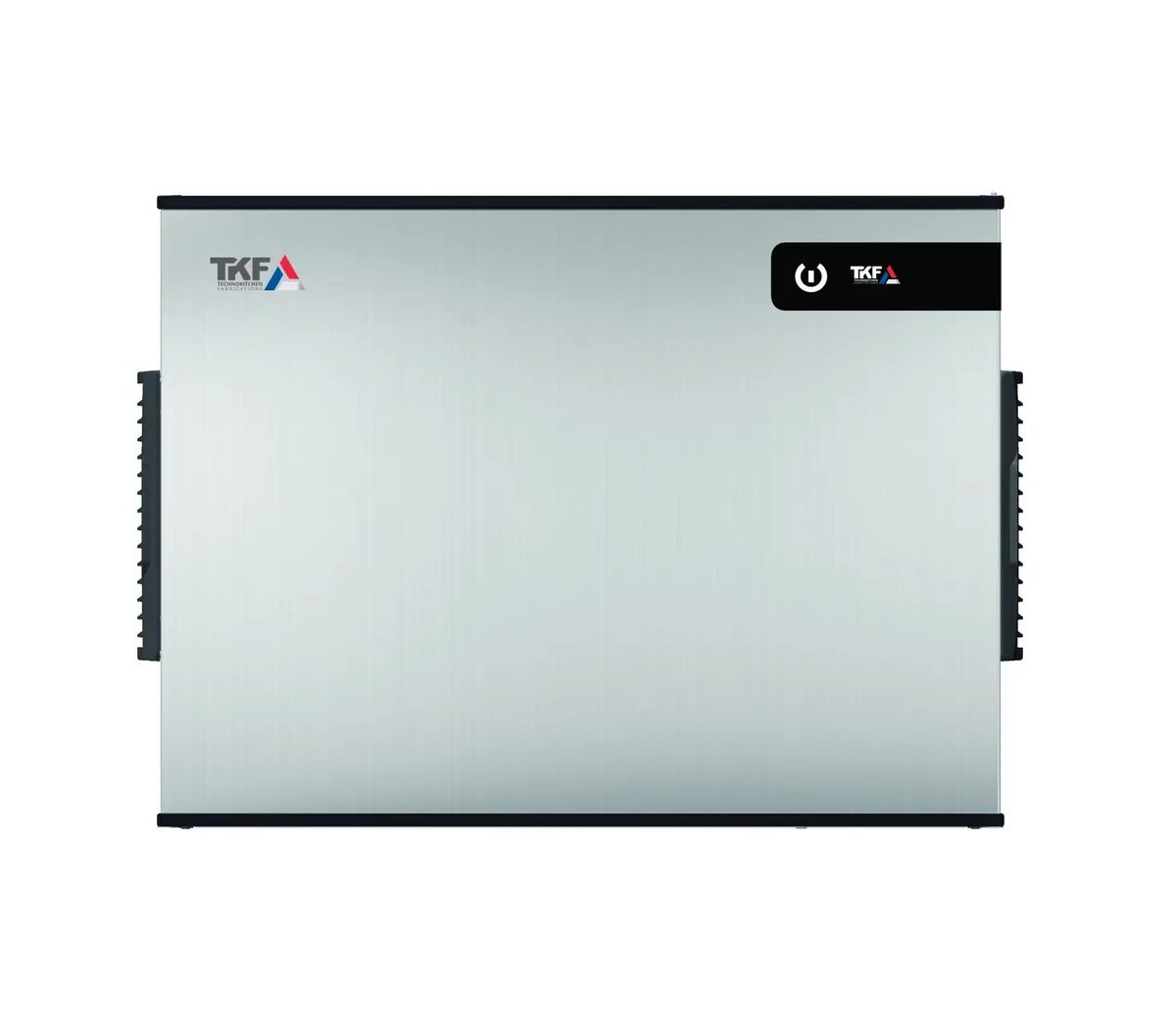

ISM-KQ450
Modular Dice Ice Maker 450kg/24h
Modular dice ice maker, 450kg per 24h, 6/10/17g cubes, vertical stainless evaporator, air or water cooled, 76x62x72.5cm — pairs with an ST storage bin
| Specification | Details |
|---|---|
| Item Code | ISM-KQ450 |
| Category | Refrigeration Equipment |
| Type | Modular dice ice maker (bin sold separately) |
| Ice Type | Dice ice — 6 g, 10 g and 17 g cube |
| Production per 24h | 450 kg (at 21°C ambient / 15°C water) |
| Storage | None built in — requires an ST series storage bin |
| Dimensions (WxDxH) | 760 x 620 x 725 mm |
| Total Power | 2,350 W |
| Condensation | Air or water cooled — specify when ordering |
| Evaporator | Vertical stainless steel, continuous water jet |
| Body | Stainless steel |
| Compatible Bins | ST S 200 (181 kg) or ST S 400 (400 kg) |
| Connections | Water inlet and drain required |
A modular ice maker is the right answer once daily demand passes what a self-contained machine can hold. The head sits on top of a separate storage bin, so production and storage are sized independently and the bin can be scaled up later without replacing the machine.
Ice is formed by a continuous jet of water flowing down a vertical stainless steel evaporator, which produces a hard, clear, slow-melting cube rather than the cloudy hollow cube a spray plate gives. The machine makes three cube weights — 6, 10 and 17 grams — so the same unit serves a cocktail bar, a soft-drink dispenser and a fish counter.
At 450 kg over 24 hours this is hotel, nightclub and banqueting capacity. Pair it with an ST S 200 bin for 181 kg of storage or an ST S 400 for 400 kg.
