Refrigerated Chef Base 4 Drawers GN 1/1 on Castors 136x70x65cm

ISM-FR4D

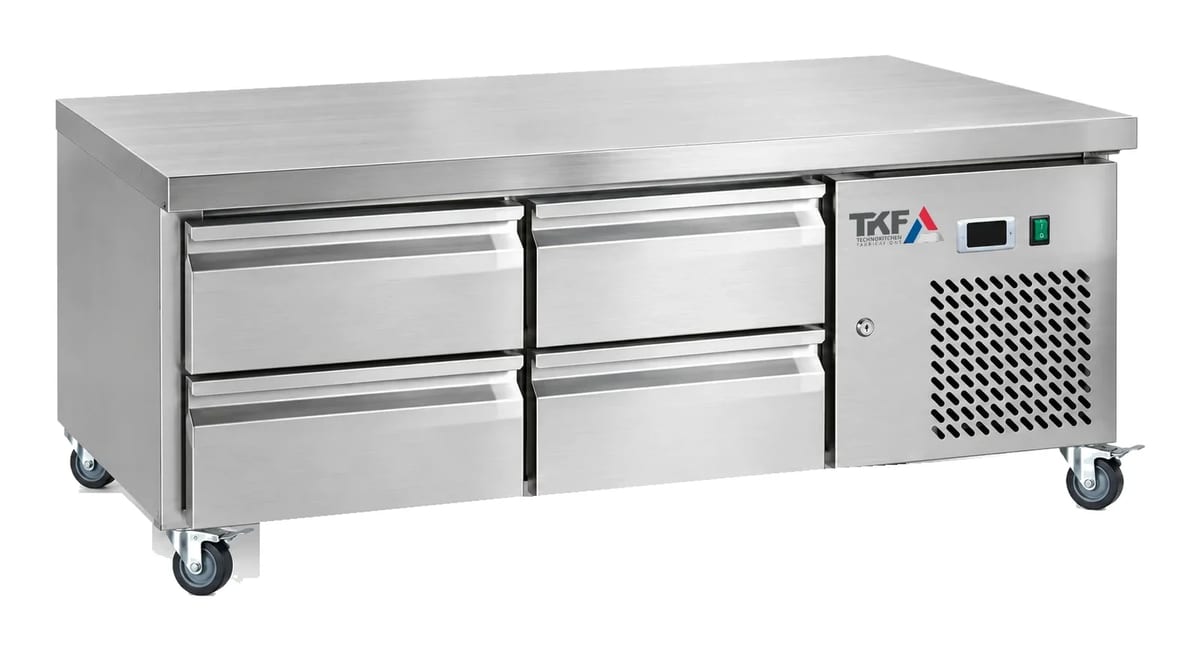

Refrigerated Chef Base 4 Drawers GN 1/1 on Castors 136x70x65cm

This 650 mm refrigerated chef base carries countertop cooking equipment and keeps 172 L of chilled ingredients in 4 GN 1/1 drawers, right under the griddle, chargrill or fryer that uses them.

Power280W
Drawers4 x GN 1/1
Capacity172L
MaterialStainless steel
RefrigerantR600a
Temperature range-2°C to +8°C
Packing1pcs/ctn
Net weight103kgs
Spec sheet (PDF)

This 650 mm refrigerated chef base carries countertop cooking equipment and keeps 172 L of chilled ingredients in 4 GN 1/1 drawers, right under the griddle, chargrill or fryer that uses them.

Four drawers taking GN 1/1 pans, in two columns of two, are reached by pulling a drawer rather than bending into a cabinet. Ventilated cooling holds −2 °C to +8 °C with automatic defrost, even at 40 °C ambient on a busy hot line, under an electronic thermostat with digital display. The refrigeration unit slides out on rails for servicing, the body is stainless steel inside and out with 50 mm polyurethane insulation, and Ø100 mm castors with a braked front pair let the base roll out for cleaning behind the line.

Item CodeISM-FR4D
FormatLow refrigerated chef base, 650 mm
Drawers4 x GN 1/1 (2 x 2)
Capacity172 L
Temperature Range-2 °C to +8 °C
CoolingVentilated, automatic defrost
Max Ambient40 °C
RefrigerantR600a
ControlElectronic thermostat with digital display, main switch
Refrigeration UnitBuilt-in, slides out on rails for service
BodyStainless steel inside and out
Insulation50 mm polyurethane
CastorsØ100 mm, front pair braked
Power280 W
Power Supply230 V / 50 Hz, single phase
Dimensions (W x D x H)1360 x 700 x 650 mm
Weight103 kg
