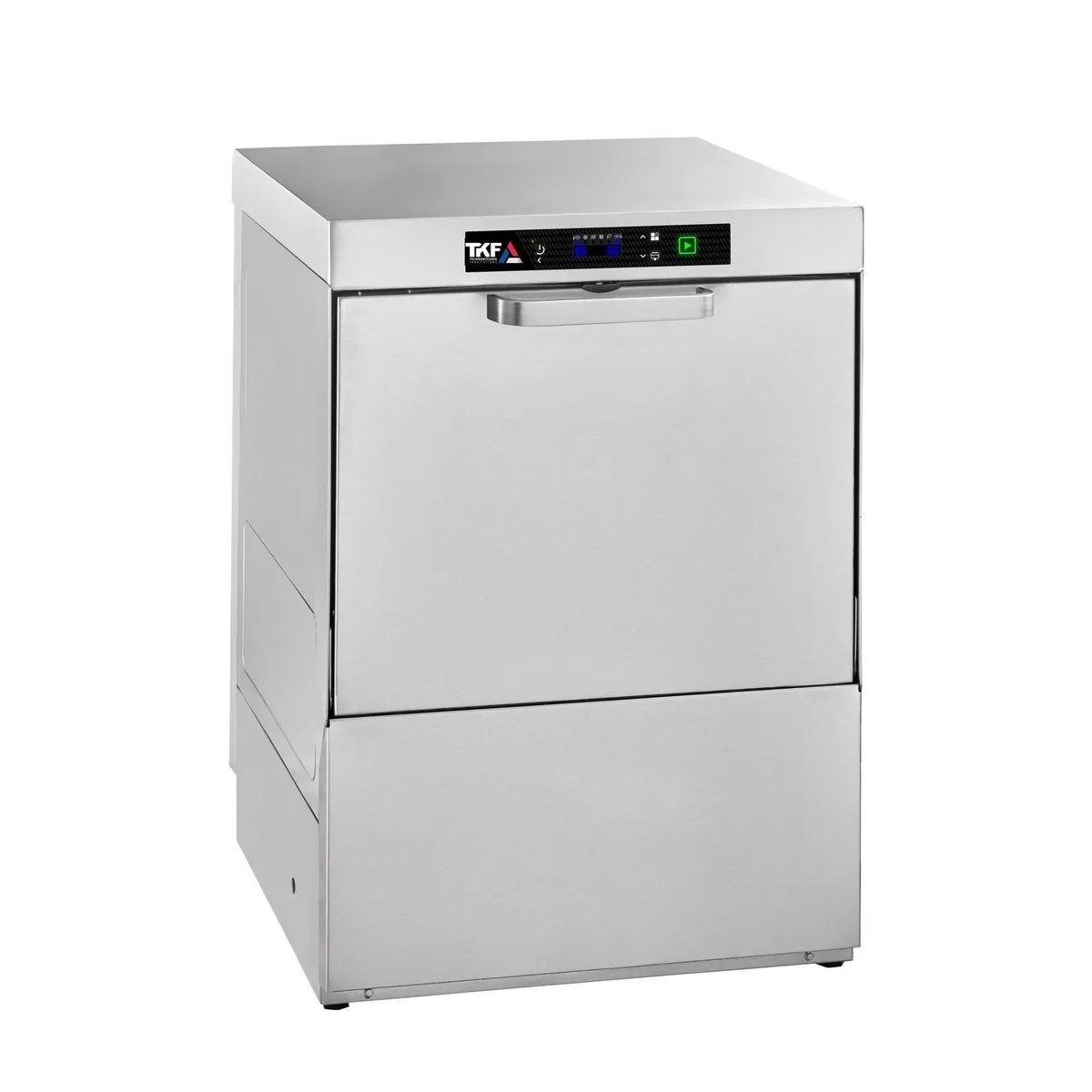

Undercounter Dishwasher 500x500 Basket, 40 Racks/h

Specification	Details
Item Code	ISM-FK50
Category	Warewashing
Type	Undercounter front-loading dishwasher
Basket Size	500 x 500 mm
Capacity	40 / 30 / 20 / 7 racks per hour
Wash Cycles	90, 120 and 180 seconds, plus a 9 minute cycle
Max Wash Height	340 mm
Dimensions (WxDxH)	572 x 633 x 814 mm
Total Power	5,050 W
Power Supply	400V 3N / 50 Hz, or 220V single phase on request
Control	Electronic Smart Interface
Technology	Multipower
Connections	Water inlet, drain and electrical supply (three phase, or single phase on request)

An undercounter machine is the standard answer for a bar, a café or a restaurant washing glassware and plates in a fixed corner of the service area. This one takes the full 500 x 500 mm rack, which is the size most kitchens already own, so existing baskets carry over.

Four cycles cover the range of work: 90 seconds for glassware coming back clean, 120 and 180 seconds for plates, and a 9 minute cycle for pans and anything that has sat. At 40 racks an hour on the short cycle the machine keeps pace with a full dining room, and the 340 mm wash height clears tall glasses and gastronorm inserts.

Control is electronic rather than a mechanical timer, which matters for consistency — the rinse holds its temperature instead of drifting with the tank.
